Stainless steel pipe and fittings guide for materials, standards and applications

a[data-rs-seo-link]{text-decoration:underline!important;color:#1a56db!important;cursor:pointer!important;}a[data-rs-seo-link]{text-decoration:underline!important;color:#1a56db!important;cursor:pointer!important;}

Why stainless steel pipe and fittings are specified together

Stainless steel pipe and fittings are used when a piping system needs corrosion resistance, cleanability, temperature capability or a longer service life than ordinary carbon steel can usually provide. The key point is that the pipe, fittings, joining method and service environment have to be specified as one system. A 316L pipe, for example, can still perform poorly if it is joined to the wrong fitting, welded without proper cleaning, exposed to stagnant chloride-rich water or ordered to a standard that does not match the pressure design.

Standards from ASTM, ASME, ISO, MSS, BSI and NSF make it clear that stainless piping is not one generic product category. It is a combination of material grades, dimensional systems, pressure rules, manufacturing routes and inspection requirements that must line up before installation.

This guide focuses on the practical choices behind stainless systems: pipe versus tube, 304 versus 316, butt-weld versus threaded fittings, pressure standards, drinking water considerations and the inspection details that often decide whether a system lasts. For related component discussions, see the Metal Fittings section.

Pipe, tube and fittings are related but not interchangeable

In everyday use, stainless steel pipe and stainless steel tube are often treated as the same item. In specifications, they are different. Pipe is usually ordered by nominal pipe size and schedule. Tube is more commonly ordered by actual outside diameter and wall thickness. That difference matters because fittings, clamps, gaskets, weld procedures and pressure calculations depend on the dimensional system being used.

A pipe system may include straight pipe lengths, elbows, tees, reducers, caps, stub ends, unions, flanges, valves and branch connections. Each part must match the design pressure, temperature, wall thickness, material grade and end connection. A system can fail at the weakest detail, so a fitting should not be selected only by outside appearance or nominal diameter.

The main fitting families include butt-weld fittings for permanent welded systems, socket-weld fittings for smaller bore pressure piping, threaded fittings for maintainable low- to moderate-pressure service, flanged fittings for equipment access and specialty sanitary or press fittings for hygienic or building-services applications. The right choice depends less on the fitting name alone and more on the fluid, pressure, maintenance access, cleaning method and code basis.

Standards that shape stainless pipe and fitting selection

Recognized standards do not automatically prove that a part is suitable for every service. They do, however, provide the language for dimensions, materials, marking, testing and documentation. The table below summarizes widely used standards and what each one helps verify. Edition dates should always be checked during procurement because standards are revised over time.

Standard or source	Main area	What it helps verify
ASTM A312/A312M	Austenitic stainless steel pipe	Seamless, welded and heavily cold worked pipe for high-temperature and general corrosive service, including heat treatment and testing requirements.
ASTM A269/A269M	Austenitic stainless steel tubing	Seamless and welded tubing for general corrosion-resisting and low- or high-temperature service.
ASTM A403/A403M	Wrought austenitic stainless steel piping fittings	Material and manufacturing requirements for common stainless pressure fittings.
ASME B16.9	Factory-made wrought butt-welding fittings	Dimensions, tolerances, ratings, testing and marking for butt-weld fittings from NPS 1/2 through NPS 48 in the 2024 edition.
ASME B16.11	Forged socket-welding and threaded fittings	Ratings, dimensions, tolerances, marking and material requirements for forged fittings.
MSS SP-43	Low-pressure corrosion-resistant butt-welding fittings	Wrought and fabricated butt-welding fittings commonly associated with stainless Schedule 5S and 10S systems.
ISO 4144:2003	Threaded stainless steel fittings	Types, pressure-temperature ratings, minimum dimensions and materials for stainless fittings threaded to ISO 7-1; ISO lists the standard as confirmed in 2026.
EN 10217-7:2021	Welded stainless tubes for pressure purposes	Technical delivery conditions for welded circular stainless tubes used in pressure and corrosion-resisting service.
NSF/ANSI/CAN 61	Drinking water system components	Minimum health-effects requirements for contaminants and impurities indirectly imparted to drinking water by products such as pipes and fittings.

For buyers, the practical lesson is to avoid ordering only “stainless steel pipe fittings.” A complete request should state the material grade, product standard, dimensional standard, schedule or wall thickness, end connection, test certificate and any application-specific certification, such as drinking water approval.

Material grade selection starts with the environment

Grade 304 and 304L are widely used austenitic stainless steels for general corrosion resistance, fabrication and many indoor or mildly corrosive services. The L grade has lower carbon, which is often preferred where welding could otherwise increase the risk of sensitization and intergranular corrosion. For many clean, ambient environments, 304L can be a practical baseline.

Grade 316 and 316L add molybdenum compared with 304-family grades, improving resistance to localized corrosion in many chloride-containing environments. That does not make 316L immune to chloride attack, especially in hot, stagnant, evaporative or crevice conditions. It does explain why 316L is commonly selected for coastal atmospheres, some water systems, food and beverage service, pharmaceutical utilities and chemical applications where 304L may be marginal.

Duplex stainless steels such as 2205 are considered when higher strength and better resistance to chloride stress corrosion cracking are needed. They can reduce wall thickness in some engineered systems, but welding, forming and inspection requirements become more demanding. High-temperature services may require H grades such as 304H, 316H, 321H or 347H when creep and stress rupture properties are important. These choices should be tied to the governing pressure code and service temperature rather than selected by habit.

The safest approach is to define the corrosive media first. Important variables include chloride level, pH, temperature, oxygen level, flow rate, cleaning chemicals, insulation exposure, crevices and whether the system will be drained after hydrotesting. No stainless grade is universal. A grade that works in clean flowing water may not work in stagnant hot brine or under chloride-contaminated insulation.

Connection type affects strength, cleanability and maintenance

Butt-weld fittings

Butt-weld elbows, tees, reducers and caps create a continuous welded piping path. They are common in process piping because they can handle pressure, temperature and vibration when correctly designed and welded. ASME B16.9 is a central dimensional standard for factory-made wrought butt-welding fittings, while MSS SP-43 addresses low-pressure corrosion-resistant applications often linked with thin-wall stainless schedules.

The advantage of a butt-weld system is continuity. The limitation is that quality depends heavily on fit-up, weld procedure, welder qualification, purge control, heat tint removal and inspection. In hygienic or high-purity systems, the internal weld profile can be as important as the external appearance.

Socket-weld and threaded fittings

Socket-weld fittings are compact and useful in smaller bore systems, but the socket gap and fillet weld create details that may trap contaminants or increase crevice risk in corrosive service. Threaded fittings are easy to assemble and disassemble, but threads reduce wall section and introduce crevices. They are usually less attractive for clean-in-place, high-purity or severe corrosion applications.

ISO 4144 covers stainless threaded fittings for ordinary piping such as steam, air, gas, water and oil using ISO 7-1 threads. ASME B16.11 covers forged socket-welding and threaded fittings. When threaded fittings are used, the thread form, sealant compatibility, pressure-temperature rating and galling risk should be checked before installation.

Flanged, sanitary and press connections

Flanges are selected when equipment must be removed for inspection, cleaning or replacement. Their performance depends on gasket material, bolting, surface finish, tightening sequence and alignment. Sanitary fittings prioritize cleanability, smooth internal surfaces and easy disassembly. Press fittings are common in some building services and water installations, but their suitability depends on certification, seal material, pressure rating and tool-controlled installation. See also: Buying Guides.

A practical specification checklist

A clear purchase or design specification reduces disputes and rework. At minimum, a stainless steel pipe and fittings specification should address the following points:

• Material grade and UNS number, such as 304L or 316L, not only the phrase stainless steel.
• Product standard, such as ASTM A312 for pipe, ASTM A269 for tubing or ASTM A403 for wrought stainless fittings.
• Dimensional standard, nominal pipe size, schedule, outside diameter or wall thickness.
• Fitting type and end connection, such as long-radius butt-weld elbow, concentric reducer, threaded union or flange.
• Pressure design basis, operating temperature, design temperature and applicable piping code.
• Surface finish and cleaning requirements, especially for food, beverage, pharmaceutical or high-purity water service.
• Inspection and testing requirements, including hydrostatic testing, nondestructive examination, positive material identification or additional supplementary tests where needed.
• Documentation, including mill test reports, heat numbers, marking requirements and traceability expectations.
• Application certifications, such as NSF/ANSI/CAN 61 where drinking water contact is relevant.

This checklist is also useful when comparing quotations. Two fittings with the same nominal size can differ significantly in grade, wall thickness, manufacturing route, standard, testing and documentation. The lower price may simply reflect a different scope.

Installation details that influence service life

Many stainless failures are not caused by the wrong alloy alone. They often involve fabrication contamination, poor drainage, weld defects, heat tint, crevice geometry, unsuitable gaskets or exposure to chlorides after installation. Stainless steel relies on a passive chromium-rich surface film, and processes that damage or contaminate that surface can reduce corrosion resistance.

During fabrication, carbon steel contamination should be avoided by using dedicated tools, clean work areas and suitable handling practices. Welds should be controlled to limit oxidation, and discoloration or heat tint should be removed when the service environment requires maximum corrosion resistance. Pickling, passivation or mechanical finishing may be specified depending on the system.

Hydrotesting is another step that needs control. If water with high chloride content is left in the system, or if sections cannot drain, localized corrosion can begin before the system is fully commissioned. Clean test water, prompt drainage and drying are especially important for thin-wall stainless tubing and systems with crevices or dead legs.

For insulated piping, external chloride contamination from insulation, weather exposure or leaks can create corrosion under insulation. Designers should consider insulation chemistry, barriers, drainage and inspection access. In water and wastewater service, avoiding stagnant zones, dead legs and deposit buildup is also important because stainless steel generally performs better in clean, flowing conditions than under deposits or in crevices.

Where stainless steel pipe and fittings make sense

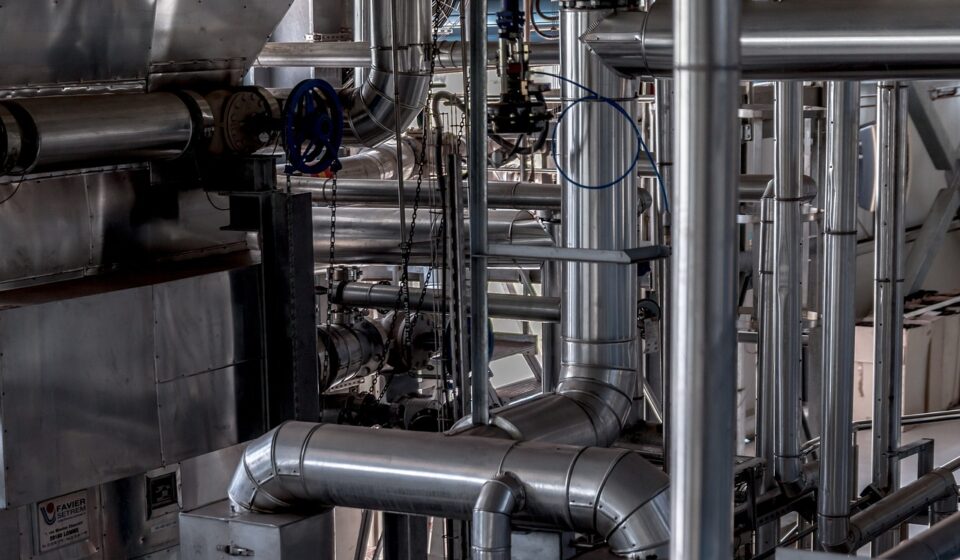

Stainless systems are commonly used in chemical processing, food and beverage plants, pharmaceutical utilities, water treatment, desalination, pulp and paper, energy facilities, architectural services and building plumbing. The reason is not only corrosion resistance. Stainless steel also offers strength, temperature capability, clean surfaces, fire resistance and long maintenance intervals when specified and installed correctly.

Even so, stainless is not always the lowest-cost or most suitable material. Carbon steel, lined pipe, plastic, copper alloys or higher nickel alloys may be better depending on pressure, temperature, media chemistry and life-cycle cost. The stronger engineering decision compares the complete system: initial material cost, fabrication, inspection, downtime risk, corrosion allowance, cleaning chemicals, replacement access and expected service life.

Frequently asked questions

Is 316 stainless always better than 304 for pipe fittings?

No. 316 and 316L often provide better resistance to localized corrosion in chloride-containing environments, but they are not automatically required for every service. 304L may be suitable for many indoor, clean or mildly corrosive systems. The decision should be based on chloride exposure, temperature, cleaning chemicals, stagnation risk and applicable standards.

Can stainless steel pipe fittings be mixed with carbon steel pipe?

They can be connected in some systems, but galvanic corrosion, contamination, pressure rating, thermal expansion and code requirements must be considered. Isolation methods, compatible gaskets and proper transition details may be necessary. Stainless parts should also be protected from carbon steel grinding dust and embedded iron contamination.

What is the difference between Schedule 10S and Schedule 40S?

Both are stainless pipe wall designations used with nominal pipe sizes. Schedule 40S has a thicker wall than Schedule 10S for many sizes, but the actual dimensions must be checked in the relevant dimensional standard. Wall thickness affects pressure capacity, weight, welding, cost and fitting compatibility.

Do stainless fittings for drinking water need special approval?

In many jurisdictions or projects, drinking water components must meet health-effects requirements such as NSF/ANSI/CAN 61 or an equivalent accepted certification. Stainless material alone does not automatically prove compliance for the finished product, because gaskets, seals, solders, coatings and manufacturing residues may also be relevant.

Why do stainless welds sometimes rust?

Rust staining near welds can result from heat tint, embedded iron, poor cleaning, crevices, chloride exposure or unsuitable filler and procedure choices. The presence of rust does not always mean the base metal is wrong, but it should trigger inspection of fabrication, cleaning and service conditions.

Key takeaway

Stainless steel pipe and fittings perform well when the specification treats them as a complete system. The grade must match the environment, the fitting type must match the connection and maintenance strategy, and the standards must match the pressure and documentation requirements. For most projects, the strongest specification is not the shortest one. It is the one that clearly defines material, dimensions, connection method, inspection, certification and installation controls before the parts arrive on site.
